[Data Structure] Treaps | 트립

Treap Basics

A BST built from inserts of N nodes having random-ordered keys stays well-balanced and thus has near-minimum height, meaning searches, inserts, and deletes are O(logN).

Because insertion order may not be controllable, a data structure that somehow randomizes BST insertions is desirable.



A treap uses a main key that maintains a binary search tree oderering property, and a secondary key generated randomly (often called "priority") during insertions that maintains a heap property. The combination usually keeps the tree balanced. The word "treap" is a mix of tree and heap.



Algorithms for basic treap operation include:

• A treap search is the same as BST search using the main key, since the treap is a BST.

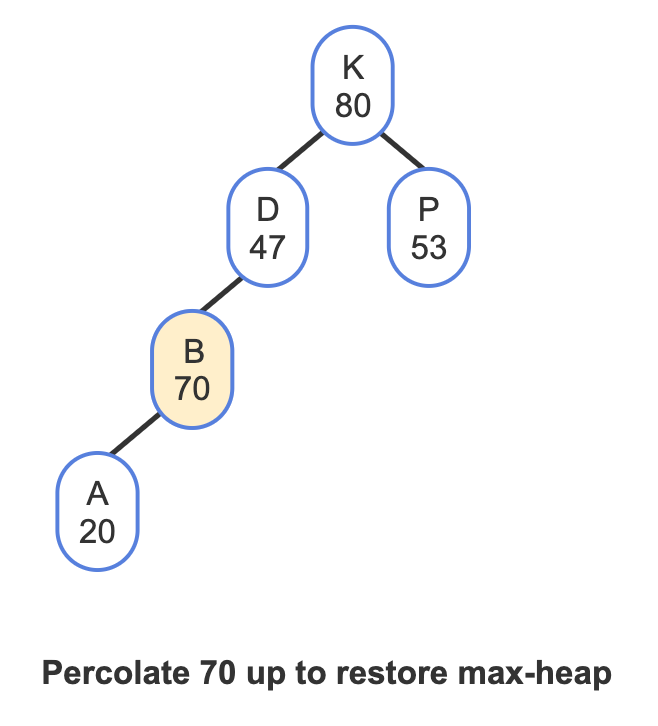

• A treap insert initially inserts a node as in a BST using the main key, then assigns a random priority to the node, and percolates the node up until the heap property is not violated. In a heap, a node is moved up via a wap with the node's parent. In a treap, a node is moved up via a rotation at the parent. Unlike a swap, a rotation maintains the BST property.
• A treap delete can be done by setting the node's priority such that the node should be a leaf (-∞ to max-heap), percolating the node down using rotations untiul the node is a leaf, and then removing the node.





0123

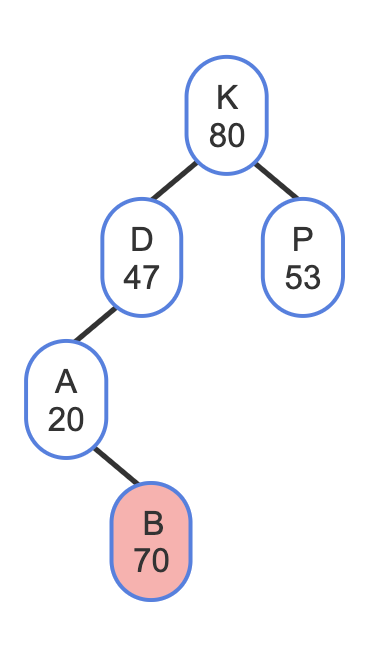

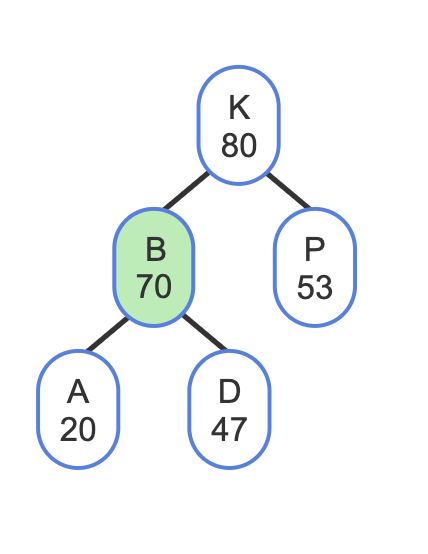

Treap Insertion

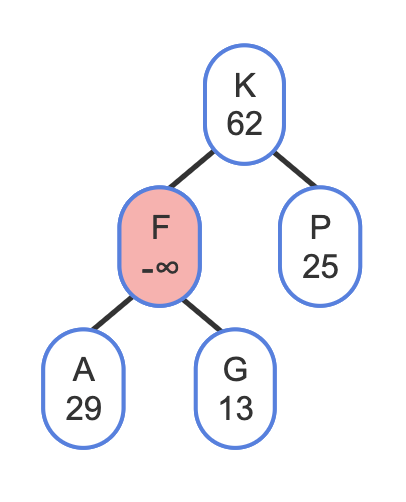

Treap Delete

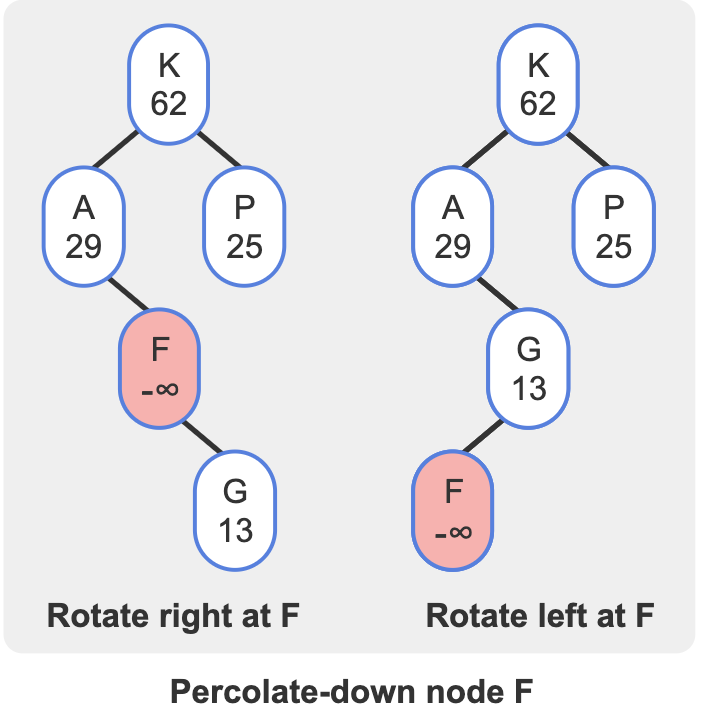

A treap delete could be done by first doing a BST delete (copying the successor to the node-to-delete, then deleting the original successor), followed by percolating the node down until the heap property is not violated. However, a simpler approach just sets the node-to-delete's priority to -∞ (for a max-heap), percolates the node down until a leaf, and removes the node. Percolating the node down uses rotations, not swaps, to maintain the BST property. Also, the node is rotated in the direction of the lower-priority child, so that the node rotated up has a higher priority than that child, to keep the heap property.

012

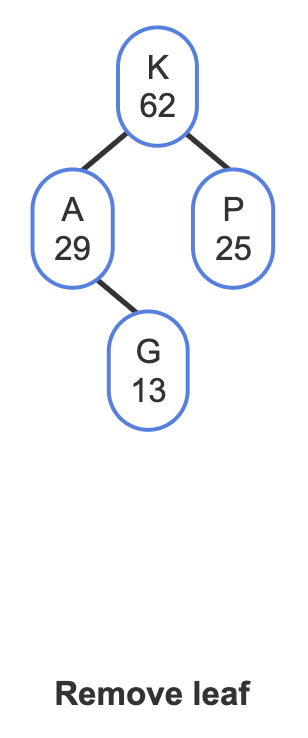

Treap Removal





Q: Suppose a treap is built by inserting nodes with main keys in this order: A, B, C, D, E, F, G. The treap will have 7 levels, with each level having one node with a right child. (True/False)

A: A BST would have such a structure, but it's treap. It assigns random priority for each node, so after insertion the nodes will be rearranged following to the heap property on the priority value.
