Graphs

A graph is a data structure for representing connections among items, and consists of vertices connected by edges.

- A vertex (or node) represents an item in a graph.

- An edge represents a connection between two vertices in a graph.



 In a graph,

- Two vertices are adjacent if connected by an edge.

- A path is a sequence of edges leading form a source vertex to a destination vertex. The path length is the number of edges in the path.

- The distance between two vertices is the number of edges on the shortest path between those vertices.



우리는 각 노드를 연결하는 edge의 길이, 색 또는 다양한 값을 통해서 weight (가중치)를 부여할 수 있습니다.

예를 들면 지도 프로그램에서 각 목적지 vertex 까지의 거리 edge를 이동 시간과 비례하여 증가하게 만들 수 있겠습니다.





---

Adjacency Lists



Graph data structure를 다룰 때에는 다양한 접근이 있습니다.

그 중 하나는 adjacency list 를 사용하는 것 입니다.



Recall that two vertices are adjacent if connected by an edge.

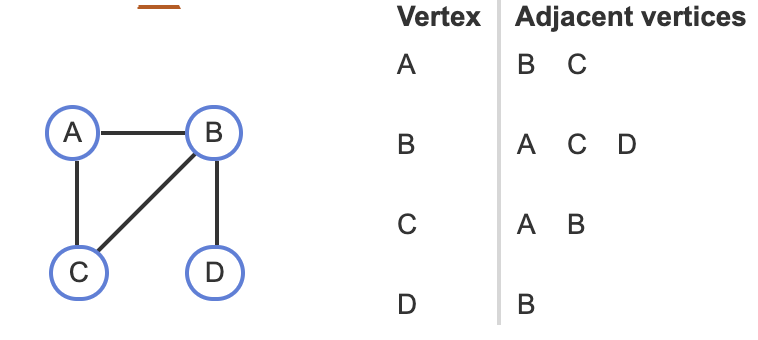

In an adjacency list graph representation, each vertex has a list of adjacent vertices, each list item representing an edge.

Adjacency List Graph Representation



A key advantage of an adjacency list graph representation is a sized of O(V + E) where V refers to the number of vertices and E the number of edges.

A distadvantage is that determining whether two vertices are adjacent is O(V), because one vertex's adjacency list must be traversed looking for the other vertex, and that list could have V items.

However, in most applications, a vertex is only adjacent to a small fraction of the other vertices, yielding a sparse graph, which is a graph having a far fewer edges than the maximum possible.





---

Adjacency Matrices



Another approach is an adjacency matrix.

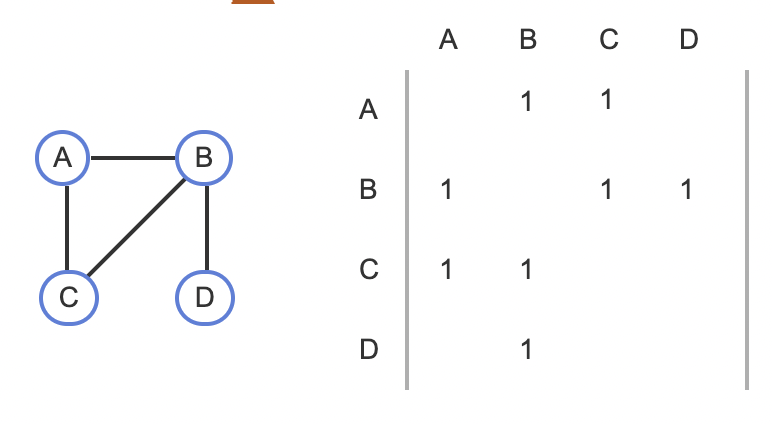

In an adjacency matrix, each vertex is assigned to a matrix row and column, and a matrix element is 1 if the corrsponding two vertices have an edge (adjacent) or is 0 otherwise.



Assuming the common implementation as a two-dimensional array whose elements are accessible in O(1), then an adjacency matrix's key benefit is O(1) determination of whether two vertices are adjacent: The corresponding element is just checked for 0 or 1.

A key drawback is O(V²) size. Ex: A graph with 1000 vertices would require a 1000 x 1000 matrix, meaning 1,000,000 elements. An adjacency matrix's large size is inefficient for a sparse graph, in which most elements would be 0's.

An adjacency matrix only represents edges among vertices; if each vertex has data, like a person's name and address, then a separate list of vertices is needed.
